BSP vs NPT Threads: How to Tell Them Apart and Adapt Them for Water Valves
If a fitting from a US-made device only turns partway onto European pipework before it stops, or a European fitting won't seat cleanly into a US-threaded valve, the pipe itself is usually fine and the thread standard is the problem. BSP (British Standard Pipe) and NPT (National Pipe Taper) are two separate thread families that were never designed to interchange, and a fitting is cut to one or the other at the factory rather than decided by how it's installed. Once you know which family you're holding, checking it takes a tape measure or a thread pitch gauge and a few minutes, and picking the right transition adapter and sealing method turns a forced connection into a leak-tight one. For the broader device picture, the guide to smart leak detectors and shut-off valves covers what these systems do; this article stays with the thread question.
- BSP and NPT threads can look alike and even start to turn together for a few rotations, but the thread angle, crest shape and diameter differ enough that forcing the connection rarely seals reliably.
- Measuring the outside diameter of the thread at two points along its length shows whether it's parallel (BSPP) or tapered (NPT or BSPT) before you order anything.
- A correctly sized BSP-to-NPT adapter, sealed the way each side is meant to seal, solves the mismatch without cutting or re-threading the existing pipe or valve body.
BSP and NPT: two different thread families behind a similar-looking fitting
BSP uses the Whitworth thread form: a 55-degree angle between the flanks, cut either as a parallel thread under ISO 228 (usually labelled BSPP, which seals on a bonded washer or O-ring rather than on the thread itself) or as a tapered thread under ISO 7 (BSPT, which seals on the thread flanks the way NPT does). BSP in one of these two forms is the default across most of Europe and much of the rest of the world (source: Explanation of common threads including BSP & NPT).
NPT follows a different standard entirely. It's defined by ANSI/ASME B1.20.1 with a 60-degree angle between the flanks, flat crests and roots instead of rounded ones, and a taper of roughly 1 degree 47 minutes along the pipe's axis, and it's the standard in the United States, Canada and parts of Latin America (source: ANSI B1.20.1 – NPT Taper Pipe Threads). The angle and crest shape are cut into the metal when a fitting is manufactured, so a thread is BSP or NPT from that point on; nothing about how many turns it takes to install, or how it's installed, changes which family it belongs to.
Why a fitting that starts to thread on still won't seal
The reason a mismatched fitting can feel almost right for a few turns before it stops or leaks comes down to how close the two standards happen to sit at common sizes. At 3/4 inch, both NPT and BSP cut 14 threads per inch, but NPT's major diameter (about 1.050 inch) runs slightly larger than BSP's (about 26.441 mm, or 1.041 inch), and the flank angle differs by five degrees between them (source: ANSI B1.20.1 – NPT Taper Pipe Threads; BSP Thread Sizes Chart). At 1 inch, NPT (11.5 threads per inch, 1.315 inch major diameter) and BSP (11 threads per inch, 33.249 mm or 1.309 inch) are close enough in both pitch and diameter that the same partial-engagement problem shows up again.
That closeness is exactly what makes forcing the connection a bad idea rather than a shortcut. Either the mismatch leaves a small gap along the thread flank that no amount of sealant tape closes reliably, or the harder thread starts to gall the softer one before the joint tightens down. On a valve that's meant to be the leak-tight point in a home's main water line, a forced joint doesn't just fail to seal; it becomes the leak the rest of the system was installed to prevent.
How to tell which thread you actually have
You don't need the manufacturer's documentation to work out which family you're holding. Start by checking for taper: measure the outside diameter of a male thread, or the inside diameter of a female one, at two points along its length. A diameter that stays the same from one end of the thread to the other is a parallel thread, which almost always means BSPP; a diameter that shrinks toward the pipe end is tapered, which means either NPT or BSPT (source: How to Measure NPT and BSP Fittings).
From there, screw a thread pitch gauge onto the fitting to count threads per inch, and compare both that count and the measured diameter against the reference figures for the size you have, since matching threads-per-inch alone is exactly what makes the 3/4-inch and 1-inch sizes deceptive on their own. As a final check, a magnifier or loupe shows the crest shape clearly: NPT crests read flat and sharp, while BSP crests read visibly rounded, which is a useful tie-breaker once the measurements have already pointed you one way.
Reading the 3/4-inch and 1-inch numbers side by side
| Nominal size | Standard | Threads per inch | Major diameter |
|---|---|---|---|
| 3/4 inch | NPT | 14 | 1.050 in |
| 3/4 inch (G3/4) | BSP | 14 | 26.441 mm / 1.041 in |
| 1 inch | NPT | 11.5 | 1.315 in |
| 1 inch (G1) | BSP | 11 | 33.249 mm / 1.309 in |
Adapting the connection for an EU install
Once you know the size and the thread family on each side, a transition adapter matched to both solves the mismatch without cutting or re-threading either the pipe or the valve body. The adapter needs to be sized to what you actually measured rather than to what looks close, since a 3/4-inch or 1-inch NPT part will not substitute for its BSP counterpart at those sizes even though the numbers look similar on a parts list.
Sealing matters as much as the adapter itself, and each side needs the method its own thread type is built for. A tapered thread, whether NPT or BSPT, seals along the thread flanks and needs PTFE tape or a pipe-thread sealant compound to fill the small clearances as it tightens. A parallel BSPP thread doesn't seal on the thread at all; it relies on a bonded washer or an O-ring seated against a flat face, so wrapping it in tape instead just adds bulk without closing the actual leak path. Using the wrong method on either side is a common cause of a slow leak even when the adapter itself is the correct size and family.
If you haven't already confirmed whether your main line is 3/4-inch or 1-inch, or its metric DN20/DN25 equivalent, that's worth settling first, and the guide to measuring your main water line's size covers that measurement on its own. If your situation is really about connecting to a specific pipe material rather than the thread standard, PEX, copper, PVC and galvanised pipe each call for their own preparation, which the guide to installing a shut-off valve on different pipe materials handles separately.

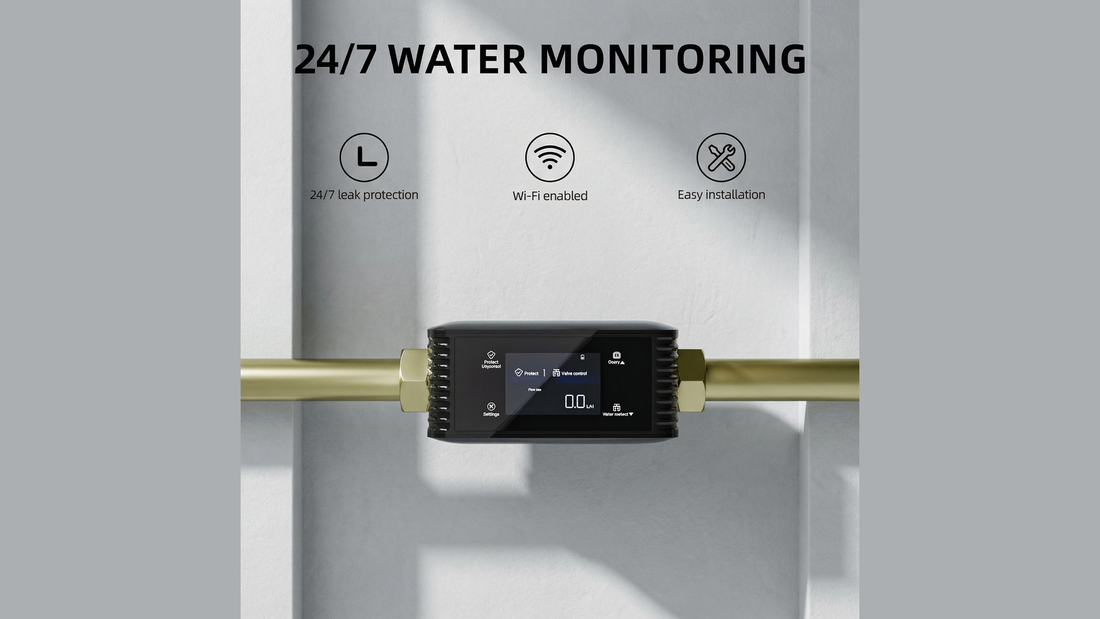

This identification work applies directly to devices like the Smart Whole House Water Leak Detector with Auto Shut-Off Valve, which lists 3/4-inch and 1-inch copper adapters in the box without stating which thread standard those adapters use. Rather than assuming either way, measure the adapter that actually arrives against the figures above before connecting it to existing pipework; at least one other Wi-Fi-controlled shut-off valve on the same smart-home app platform ships a BSP-threaded adapter with its EU units and an NPT-threaded one with its US units, so a region-specific adapter is a real, current consideration for this category of device rather than a hypothetical one.
If the adapter still won't seat squarely once it's the right size and family, or the existing pipe thread already shows damage from an earlier forced attempt, that's a point to bring in a qualified plumber rather than adding another turn of the wrench; the step-by-step installation guide covers where a professional typically takes over, and the cost comparison for US and EU installs is a useful reference if you're weighing doing the work yourself against hiring someone.
Getting the thread right matters because the payoff of an automatic shut-off valve depends on the joints around it holding. Detection and automatic shut-off reduce how much water damage a leak can cause, but no alarm or valve guarantees that a leak won't happen or that damage will be fully prevented; a connection that's leak-tight from the start is still the part you control before anything gets tested.
