Countertop vs Under-Sink Hydrogen Water Generators: Installation, PPB and Cost

An under-sink hydrogen water generator is a plumbed unit that installs inside your cabinet, connects to its own small tap, and needs prefiltered water plus a professional install to get running. A countertop generator instead plugs into a wall outlet, sits on your counter, and takes purified or bottled water that you pour in yourself. Both formats can produce hydrogen-rich water through the same core electrolysis process, but the format you choose changes what your kitchen, your plumbing, and your maintenance routine actually look like. This guide walks through a documented plumbed system and Hydrion's own installation-free countertop machine as concrete examples, so you can compare the two formats on what they require rather than on PPB alone.

• A plumbed under-sink generator needs prefiltration ahead of it, usually a reverse-osmosis unit or whole-house filtration, plus a minimum inlet water pressure, and typically a single professional installation visit.
• A countertop generator such as the Hydrion Flux runs from a standard wall outlet and a water fill you provide each time, so it moves with you between a kitchen, an office desk, or a rental home.
• PPB and ppm figures from different manufacturers are measured under different test conditions, so lining up an under-sink spec sheet against a countertop one and picking the bigger number is not a fair comparison.
• Hydrion currently makes installation-free countertop and inhalation machines, not a plumbed under-sink system, so a reader set on a dedicated-tap format will need to research that category directly.

What installing an under-sink hydrogen water generator actually involves

A plumbed hydrogen water generator lives inside the cabinet under your sink and dispenses through its own small tap mounted alongside your regular faucet, rather than feeding hydrogen-rich water through the main line to every tap in the house. The Echo Flow, one of the more thoroughly documented plumbed systems on the market, shows what that setup actually requires: the manufacturer specifies prefiltration ahead of the unit, either a reverse-osmosis system or whole-house filtration, plus a minimum inlet water pressure of 10 psi, because the generator itself is a hydrogen-enrichment device rather than a standalone filter (source: ECHO Flow Hydrogen Water Machine).

Beyond the water side, the unit needs a standard household electrical outlet within reach of the cabinet and, in most kitchens, a hole through the counter or sink deck for the dedicated tap if one is not already there. Cabinet space is chiefly a factor when the prefiltration route is a reverse-osmosis unit, since the manufacturer's own installation notes describe fitting that unit in the same cabinet, on the same faucet, in a single visit. Whole-house filtration works differently: it sits at the point where water enters the home, so it never competes for room under the sink, and the cabinet only has to receive water that already clears the 10 psi minimum. The Echo Flow itself is compact for this category, sized at 9.5 x 9.5 x 3.5 inches and roughly 3.85 lbs, so once the prefiltration route is settled, the machine itself is rarely what strains the available space. Because plumbing, electrical, and drilling work all have to come together correctly, the manufacturer recommends having the installation checked or fitted by a professional, while describing the process itself as straightforward and typically completed in a single visit. Before you commit, the manufacturer also offers to review your specific under-sink layout, and an installer can handle drilling the hole for the dedicated tap if one isn't already there.

What a countertop, plug-in generator asks of you instead

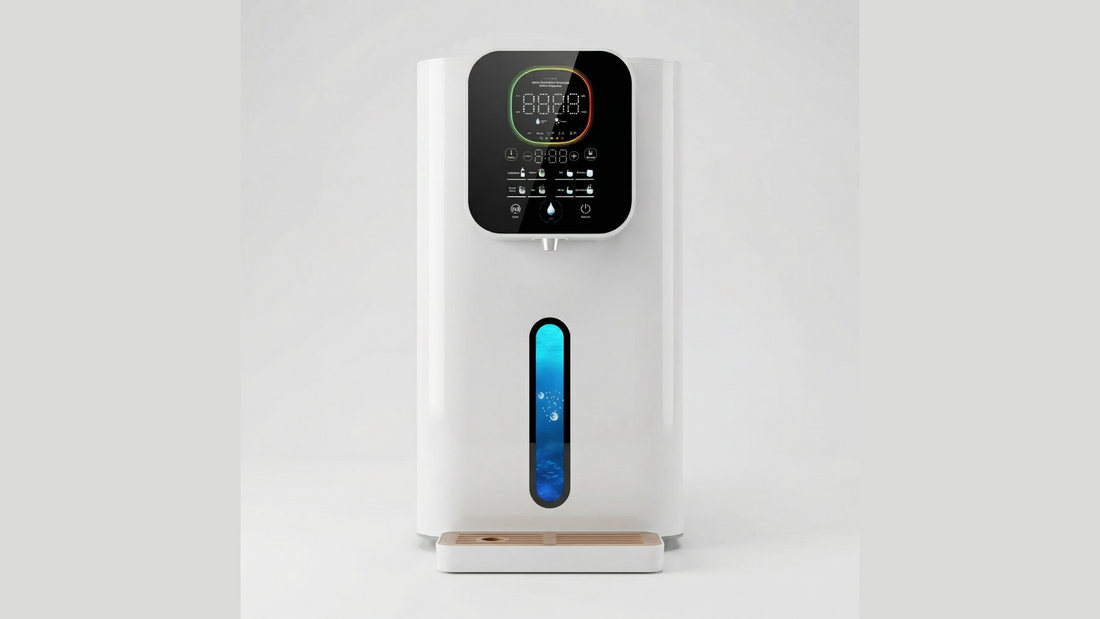

A countertop unit skips that plumbing step entirely. The Hydrion Flux, for example, is described by the manufacturer as installation-free: it sits on the counter, plugs into a standard outlet, and is ready once you fill it with purified or bottled water. Its listed specifications include SPE/PEM electrolysis, 99.99% hydrogen purity, a water concentration rated at 4,000+ PPB, a 500 ml/min hydrogen flow rate, three water-temperature settings, and dimensions of 198 x 412 x 368 mm. SPE/PEM is one electrolysis method used across a range of hydrogen generators, but it is not safe to assume every plumbed system uses the same one: the Echo Flow, for instance, markets its mechanism only as its own "Echo Hydrogen Module," without naming a membrane type, so comparing two specific machines means checking each manufacturer's own documentation rather than assuming a shared process. If you want the chemistry behind SPE/PEM specifically, this explainer on how hydrogen water generators work covers what happens inside that type of membrane.

The trade-off that comes with skipping the plumbing work is that you supply the water for every fill instead of the unit drawing continuously from your home's line. In exchange, the machine can be unplugged and carried to an office desk, a different kitchen, or a rental apartment whenever your situation changes.

Reading PPB and flow-rate numbers across the two formats

The Echo Flow's documentation rates it for hydrogen concentration up to 1.21 ppm and a flow rate up to 1.2 L/min (source: ECHO Flow Hydrogen Water Machine), while the Hydrion Flux is rated at 4,000+ PPB with a 500 ml/min hydrogen flow rate. Those two figures use different units on different scales, and each manufacturer measures under its own test setup: the temperature of the water, the flow rate during the test, and the exact point in the system where the reading was taken all shape the number that ends up on a spec sheet. Placing the two figures side by side and treating the larger one as evidence of a "stronger" machine skips over that difference. This explainer on PPB versus PPM goes further into what the units actually represent if you want to compare specifications properly.

Why unit differences (ppm vs PPB) matter when comparing two spec sheets

Flow rate adds a second variable worth separating from concentration. A system reporting a higher concentration at a slower flow delivers a different experience than one reporting a moderate concentration at a faster flow: the first fills a glass more slowly with more concentrated water, and the second fills faster with less. Neither pattern is automatically the better choice for every household; someone filling a bottle for the gym cares about flow rate more than someone pouring a single glass at breakfast. Treat each spec sheet as a description of that machine's own output under its own test conditions, useful for comparing a model against its own claims over time, rather than as a scoreboard between two different manufacturers.

Cost and maintenance layers to weigh beyond the machine itself

The generator is only one line item in the cost of a plumbed system. Most under-sink hydrogen generators, including the Echo Flow, assume an existing reverse-osmosis or whole-house filtration setup ahead of them; if your kitchen does not already have that prefiltration in place, it becomes a separate purchase and a separate maintenance schedule layered on top of the generator itself. Installation labor and any drilling for the dedicated tap are one-time costs specific to the plumbed format, and a countertop unit avoids both because it never opens up your plumbing in the first place.

Both formats still carry their own running maintenance: filters, membranes, or descaling on a schedule the manufacturer sets, so check the specific product's manual rather than assuming either format stops needing attention once it's installed. This cost breakdown across hydrogen water formats compares the ongoing per-litre costs in more detail if you want the fuller financial picture beyond installation.

One difference outlasts the purchase price: a plumbed unit is fixed to that sink and, in most kitchens, stays with the property when you move, while a countertop unit goes wherever its owner goes.

Matching the format to your kitchen and household

If you rent, expect to move within the next few years, or would rather not modify your plumbing, a format that skips installation removes that variable from the decision entirely. Deciding on that basis first, before comparing any spec sheet, keeps the rest of the choice simpler.

A household that wants hydrogen water available on demand at one fixed sink, without keeping a reservoir topped up, is the situation a plumbed system is built to serve; it makes the most sense once the kitchen is settled and the plumbing work is worth doing a single time. Readers who also want an inhalation option, or who want to use the machine somewhere other than one fixed sink, such as a desk or a second kitchen, are usually better served by a countertop, plug-in design instead.

If you're weighing several countertop machines against each other rather than the installation question itself, this comparison of home hydrogen water machines covers that ground directly. If you're equipping a shared or higher-traffic space rather than a single household, this guide to hydrogen water dispensers for gyms, clinics, and cafés is the more useful starting point.

Where Hydrion fits in this decision

Hydrion currently sells installation-free countertop and inhalation machines, not a plumbed under-sink generator, so it's worth being upfront about that before you read any further into the comparison. For a reader who has decided the plumbing and drilling a permanent under-sink system requires isn't worth it for their kitchen, the Hydrion Flux offers the same core electrolysis approach in a unit you fill and move as needed, with hydrogen inhalation built into the same machine. If, after weighing the trade-offs above, you still want a permanently plumbed, dedicated-tap system, that's a distinct product category, and it's worth reading a plumbed unit's own installation documentation directly rather than assuming it behaves like a countertop machine.

The practical way to choose between an under-sink and a countertop hydrogen water generator is to start with your plumbing situation, your lease or ownership status, and how you actually want to fill a glass day to day, and only then look at PPB or flow-rate figures. Even at that point, compare a machine against its own claims rather than against a different manufacturer's number in a different unit. Once you know which installation type fits your kitchen, the remaining decision is simply which specific machine in that category matches your household's routine.
