What Size Is My Main Water Line? How to Measure (3/4" vs 1" and Metric DN20/DN25)
To find out whether your main water line is a 3/4-inch or 1-inch pipe, measure its outside diameter with a tape measure or a length of string, then check that number against a sizing table for your pipe's material. Copper, PEX and steel each translate a nominal label into a different actual diameter, so the same "3/4-inch" name can mean a slightly different measurement depending on what the pipe is made of. Once you have an outside-diameter reading and know the material, you can match it to a US nominal size or its metric DN equivalent and confirm whether a shut-off valve or leak detector's stated fit range will actually cover your line before you buy it.
- Measuring the pipe's outside diameter directly, rather than trusting an old label or a guess, is the only reliable way to confirm size before ordering a fitting or a whole-house device.
- Copper and PEX (CTS) tubing share the same outside-diameter convention, so a 3/4-inch nominal line in either material measures about 7/8 inch across.
- Steel pipe sized on the NPS/Schedule 40 system uses different actual diameters at the same nominal label, so a 3/4-inch steel line measures about 1.050 inches, not 7/8 inch.
- DN20 and DN25, seen on imported or European fittings, are metric names for the same two common sizes rather than literal millimeter measurements of the pipe.
Why Pipe Size Matters Before You Buy a Shut-Off Valve or Leak Detector

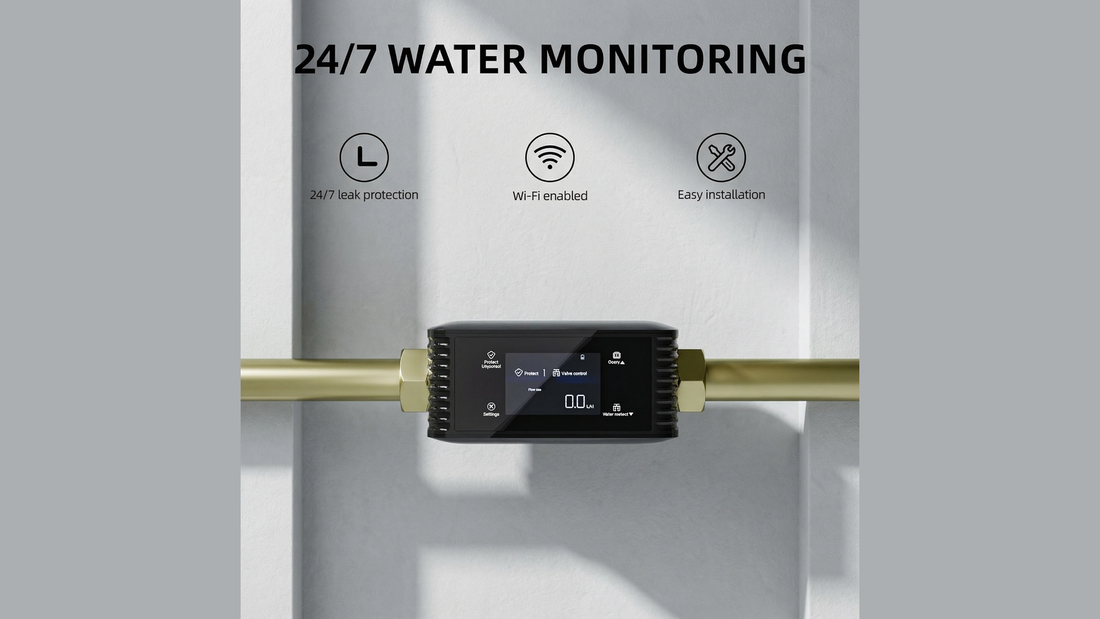

A whole-house shut-off valve or leak detector installs inline on the main water line, so it has to physically fit that section of pipe, either directly or with an included adapter. Ordering one based on a remembered or printed label carries real risk, because a pipe's nominal size, the "3/4-inch" or "1-inch" you see on a spec sheet, is a naming convention rather than a number a tape measure will confirm. Two pipes carrying the same nominal label can have noticeably different actual diameters depending on the material, which is exactly why a quick measurement before ordering saves a return trip or an extra adapter later. If you are still weighing whether a whole-house leak detector and automatic shut-off makes sense for your home in the first place, this overview of how smart leak detectors and shut-off valves work covers the category before you get into measuring your own line.
How to Measure Your Pipe's Outside Diameter
Start by finding a straight, unobstructed run of pipe, ideally a few inches away from any fitting, valve or elbow, since the extra material around a joint can throw off a reading. If you have not yet located your main line, finding your main water shut-off valve is usually the fastest way to identify the section you'll be measuring. From there, which method you use depends on how much of the pipe you can actually reach.
Tape-Across Method
When a section of pipe is exposed on more than one side, such as a straight run near the main shut-off, lay a standard tape measure flat across the face of the pipe and read the widest point it spans. That reading is the outside diameter (OD), and it's the number you'll compare against the tables below. Take the measurement twice from slightly different angles to make sure you've caught the true widest point rather than a slightly off-center pass across the pipe.
String and Circumference Method
Pipe that sits tight against a wall, joist or cabinet often can't be measured straight across with a rigid tape. In that case, wrap a piece of string or a flexible cloth tape snugly around the pipe, mark or pinch the point where it overlaps itself, then lay that length flat and measure it. That measurement is the pipe's circumference, and dividing it by pi (about 3.1416) gives you the outside diameter. This method is a practical workaround for pipe you can wrap but not measure straight across, and it's not inherently more precise than a direct tape reading, so use the tape-across method whenever the pipe is accessible enough to allow it.
Matching Your Measurement to a Nominal Size
Nominal pipe sizes were set decades ago to reflect old inside-diameter conventions, and they diverged from the pipe's actual outside diameter as standard wall thicknesses changed over time (source: Nominal Pipe Size, Wikipedia). In practice, that means a measured OD should always be looked up in the right table for the material rather than assumed to equal the number in the pipe's name.
Copper Pipe (Type K/L/M)
Copper plumbing tube follows the copper-tube-size (CTS) convention, where the actual outside diameter equals the nominal size plus 1/8 inch (source: Copper tubing, Wikipedia). Types K, L and M share that same outside diameter at a given nominal size and differ only in wall thickness and inside diameter (source: K, L, M Copper Pipe Dimensions, PexUniverse).
| Nominal size | Actual outside diameter | Notes |
|---|---|---|
| 3/4 inch | 7/8 inch (0.875 in / 22.225 mm) | Same OD across Types K, L and M; wall thickness and bore vary by type. |
| 1 inch | 1 1/8 inch (1.125 in / 28.575 mm) | Same OD across Types K, L and M; wall thickness and bore vary by type. |
PEX Tubing (CTS)
PEX tubing is sized on the same copper-tube-size convention as copper pipe, so a 3/4-inch nominal PEX line and a 3/4-inch nominal copper line share essentially the same outside diameter, and the same holds at 1 inch (source: PEX tubing technical specifications, PexUniverse).
| Nominal size | Actual outside diameter | Notes |
|---|---|---|
| 3/4 inch | about 0.875 inch | Matches copper and CPVC at the same nominal (CTS) size. |
| 1 inch | about 1.125 inch | Matches copper and CPVC at the same nominal (CTS) size. |
Galvanized or Black Steel Pipe (NPS)
Steel pipe works on a different system. Sized by NPS (Nominal Pipe Size) and Schedule 40 wall thickness, its outside diameter is not the nominal figure plus a simple fraction; it's a fixed value defined by the standard (source: Standard Pipe Schedules and Sizes, Engineers Edge). "Schedule" here describes wall thickness, not diameter, so a heavier schedule keeps the same outside diameter and simply narrows the bore.
| NPS nominal size | Actual outside diameter (Schedule 40) | Notes |
|---|---|---|
| 3/4 inch | 1.050 inch (26.7 mm) | OD stays the same across schedules; a heavier schedule narrows the inside bore. |
| 1 inch | 1.315 inch (33.4 mm) | OD stays the same across schedules; a heavier schedule narrows the inside bore. |
3/4-Inch vs 1-Inch Main Lines: What the Difference Looks Like
Once you have a reading, it helps to see how close the two most common main-line sizes actually sit next to each other. In copper or PEX, a 3/4-inch line measures 7/8 inch across and a 1-inch line measures 1 1/8 inch, a difference of only a quarter inch in outside diameter. In steel, the gap runs from 1.050 inches at 3/4-inch NPS to 1.315 inches at 1-inch NPS. Because that quarter-inch (or so) difference is easy to misjudge by eye, and because the OD-to-nominal relationship isn't the same across materials, always confirm which material your main line is made of before you read either table off a single tape measurement.
US (NPS) vs Metric (DN) Sizing: Reading Imported or European Fittings
If a fitting, valve or spec sheet shows a size like DN20 or DN25 instead of an inch measurement, you're looking at the metric DN (nominal diameter) system defined in ISO 6708, which was designed as a metric name for the existing inch-based NPS sizes rather than a separate measurement scale (source: Nominal Pipe Size, Wikipedia). DN20 corresponds to NPS 3/4, with the same 26.7 mm (1.050-inch) steel outside diameter, and DN25 corresponds to NPS 1, at 33.4 mm (1.315-inch) OD (source: DN to Inches Chart, HT Pipe). Treat a DN label the way you'd treat a US nominal size: a name to look up in a table, not a number to measure directly off the pipe. If your next step after confirming diameter is figuring out whether a fitting's threads will actually mate with your valve, telling BSP and NPT threads apart is the check that usually comes next on imported or older hardware.
What to Do With Your Measurement
With an outside-diameter reading and a known material in hand, compare both against the specific device's stated fit range and whatever adapters ship in the box, rather than relying on the nominal label alone.
If your measurement lands outside the common 3/4-inch or 1-inch range, or your line turns out to be an older or less common fitting type, a qualified plumber can confirm the match and, where needed, adapt the connection before anything gets installed. Once you're confident about size, how an automatic shut-off valve actually gets installed walks through the tools, steps and the point at which hiring a plumber makes sense instead of doing it yourself.
