Hydrogen Water + Inhalation 2-in-1 Machines: Worth It or a Compromise?

A 2-in-1 machine like the Hydrion Onyx puts hydrogen inhalation and hydrogen-rich drinking water behind one power cord and one electrolysis cell, and whether that combination is worth it depends less on the spec sheet than on how you would actually use both functions. The gas-output and PPB numbers on the product page describe what the machine can produce, not what a combo format costs or saves compared with a dedicated inhaler plus a separate bottle. Separating those two questions makes the trade-offs concrete: what the flow-rate figures actually mean for dosing, and what you gain or give up by sharing one footprint and one cell between two functions.

• Check whether you expect to use inhalation and drinking water daily and side by side, since that pattern is where a shared footprint pays off most directly.
• Compare the machine's rated hydrogen flow rate against the dosing research below rather than assuming a bigger ml/min number means a proportionally stronger session.
• Weigh what happens if the shared cell needs service: a combo takes both functions offline at once, while two separate devices let one keep working.
• Consider whether more than one person will inhale at the same time, since that changes whether a multi-port outlet is a real feature or an unused one.

What the Onyx's inhaler and water numbers are actually measuring

Both the gas line and the water line on a combo unit draw on the same electrolysis process, just routed differently afterward. In a polymer electrolyte membrane (PEM) electrolyzer, water reacts at the anode to form oxygen, while hydrogen ions cross a solid polymer membrane to the cathode and combine with electrons there to form hydrogen gas (source: U.S. Department of Energy). One stream of that hydrogen is diverted to the inhalation outlet as gas; the rest dissolves into the water passing through the cell, which is what the PPB reading on the display reports. The two figures come from the same reaction but answer different questions and shouldn't be read on the same "bigger is better" scale — what the PPB figure on the water side actually measures is worth understanding on its own before comparing machines by it.

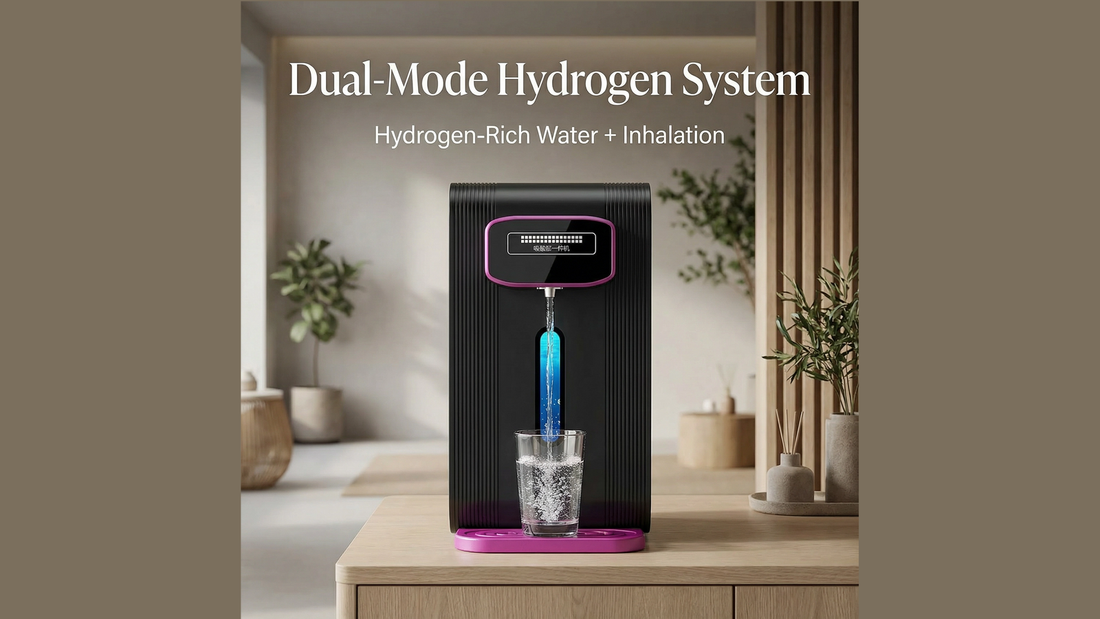

Onyx's listing puts total gas output at 900 ml/min, split as 600 ml of hydrogen and 300 ml of oxygen per minute, with drinking-water concentration above 2,000 PPB. Those are the seller's own figures for this unit, not an independent measurement, and they describe what the cell produces, not what reaches a person during a session — a distinction the next section builds on.

Why PEM cells matter for gas purity

PEM electrolyzers run at lower temperatures than alkaline or solid-oxide designs, generally around 70-90°C, which suits compact, countertop-scale units better than the larger industrial cells built around those other chemistries (source: U.S. Department of Energy). Onyx's listing describes a platinum-coated membrane from a German manufacturer, which is the seller's account of the component rather than an independent purity test, but it's consistent with how PEM cells are generally built to keep the hydrogen stream free of the electrolyte carryover that can affect alkaline systems.

Does a higher inhalation flow rate mean a stronger dose?

The honest answer is: not proportionally, and not past a certain point. A study delivering 100% hydrogen through a nasal cannula to pigs at a comparatively low flow rate of 250 ml/min raised arterial hydrogen concentrations into a range that earlier research had already associated with a therapeutic effect (source: Sano et al., J Clin Med Res 2020). That result suggests a fairly modest flow rate can already do meaningful work, which raises the obvious question of what a much higher spec number is actually buying a user.

A 2026 respiratory-physiology modeling paper tackles that question directly by proposing the fraction of inspired hydrogen (FiH2), measured at the airway, as the standardized way to describe an inhaled dose, rather than the source gas's flow rate or concentration alone. Its modeling estimates that roughly 200-300 ml/min of absolute hydrogen already reaches a 1% FiH2 target in a typical adult, a level associated with the blood concentrations linked to benefit in earlier work, and it separately flags source hydrogen above 4% concentration as a flammability hazard regardless of the dosing question (source: LeBaron et al., Respir Res 2026).

Set against that modeled 200-300 ml/min range, Onyx's 600 ml/min hydrogen share already sits above it. The catalog's dedicated inhalers, Zenith and Titan, are built as larger-capacity units aimed at longer continuous sessions or more than one person's cannula running at once, rather than at delivering a proportionally larger dose to a single user who is already above the modeled threshold. A larger unit is a real feature for longer or shared sessions, not evidence that the combo's inhalation side is under-built for one person; check each product's own listing for its rated gas output before comparing numbers directly.

What you gain and give up by combining both functions in one box

A single combo unit needs one countertop footprint and one power connection, instead of two devices, two power outlets, and two spots to store or set up each time. For a kitchen or bedside counter with limited space, that alone can decide the question before the flow-rate numbers even come into it.

The trade-off sits on the other side of the same design choice: because both functions share one electrolysis cell, a fault or a scheduled service takes both offline at once. Pairing a dedicated inhaler such as Titan with a separate drinking bottle keeps water available if the inhaler needs attention, or the reverse, since the two devices don't share a single point of failure. Onyx's three-port gas outlet is a genuine capability specific to that unit — built for more than one person to inhale at the same time, something a single cannula adapter on a standard bottle can't offer — so it matters mainly where sessions happen together rather than one after another.

Combo units also sit at the top of the catalog's price range, since one unit does the work of two device categories. Buying a dedicated inhaler and a bottle separately costs more devices to manage but spreads that spending out, letting someone start with whichever function they're more confident they'll use daily.

When a phased purchase makes more sense than a combo

If you're not yet sure inhalation sessions will become a daily habit, starting with a hydrogen water bottle and adding a dedicated inhaler later avoids paying combo pricing for a function you might use inconsistently. The reverse works too: someone confident about inhaling daily but unsure about drinking hydrogen water regularly can start with Flux or a dedicated inhaler and add drinking capability afterward. Either way, a fault in one device never removes both functions at once — the redundancy the section above described.

Setting up and running a gas-generating machine safely

Hydrogen has a flammability range of roughly 4% to 75% by volume in air, one of the widest ranges of any common gas, and because hydrogen is lighter than air it tends to rise and disperse rather than pool at floor level (source: Hydrogen safety, Wikipedia). That's the physical reason manufacturer guidance for hydrogen-generating equipment typically calls for normal room ventilation and keeping the unit away from open flame or other ignition sources, rather than sealing it into an enclosed cabinet where gas could concentrate near the ceiling.

It's worth being precise about what that flammability figure describes, because it isn't the same scenario as a nasal cannula session. A cannula delivers a small, continuous hydrogen stream mixed into the room air a person already breathes; the 4-75% figures describe concentrated source gas building up in an enclosed space, a different exposure than a low, ventilated stream reaching a person's airway. Conflating the two would overstate the risk of ordinary inhalation use while understating why the machine itself still needs normal ventilation around it.

Beyond that general physics, the unit's own manual is the authority on water type (Onyx's listing specifies distilled or low-TDS water, under roughly 3 TDS), placement, and any model-specific ventilation instructions. This article explains the underlying mechanism and the reasoning behind that kind of guidance; it isn't a substitute for the manual that ships with the machine, and anything involving the unit's electrical connection or a fixed installation is a job for a qualified installer if the manual calls for one.

Deciding between the Onyx combo and separate devices

For someone who wants both functions regularly, has one counter spot to give up, and may run sessions with another person in the house, the combo format removes a second device and a second cable without giving up either function — and, per the modeling above, without under-delivering on inhalation dose for a single user. For someone who isn't yet sure inhalation will become a daily habit, or who values being able to service one function without losing the other, starting with a bottle and adding a dedicated inhaler chosen against the fuller buyer's-guide criteria spreads out both the cost and that uncertainty.

Both paths draw on the same PEM electrolysis and run into the same physiological ceiling on what extra flow rate adds, so the decision comes down to footprint, budget timing, and how many people will use the machine — not which option is "more powerful." Readers deciding at the device-category level more broadly may find the fuller comparison of machines, bottles, and pitchers useful, and anyone still unsure whether inhalation or drinking delivers more hydrogen into the body can check how the two delivery methods compare. A lower-cost middle ground also exists: pairing a cannula adapter with a standard hydrogen water bottle adds a basic inhalation option without a second full machine, while the broader machine ranking compares every hydrogen water machine in the catalog side by side.
