Installing an Automatic Shut-Off Valve on PEX, Copper, PVC or Galvanized Pipe

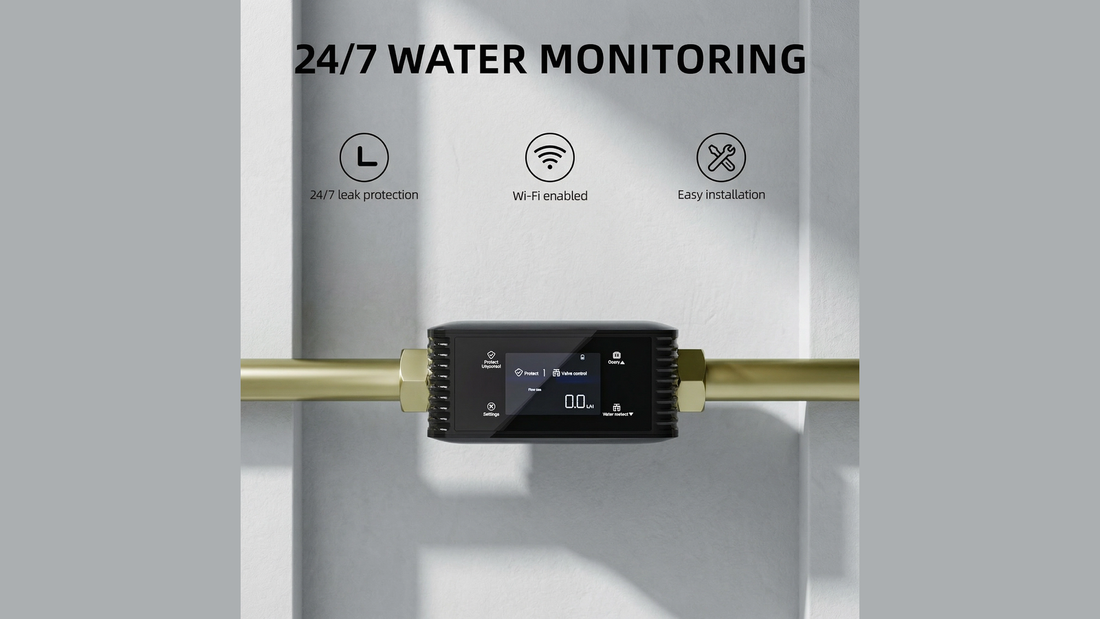

The Hydrion Smart Whole House Water Leak Detector with Auto Shut-Off Valve ships with 3/4-inch and 1-inch copper adapters, so it connects directly to copper pipe of either size. If your main line is PEX, PVC or CPVC, or older galvanized steel, you will need one additional transition fitting to bridge that pipe material to the copper adapter before the device goes inline. Which fitting depends on what your main line is actually made of, and that in turn decides how much of the job you can reasonably do yourself.

• PEX usually reaches the copper adapter through a sweat adapter, a stab-in tee, or a compression-type shut-off, depending on whether you want to avoid soldering altogether.
• Copper connects straight to the included adapters, either by soldering the joint or by using a compression fitting that needs no torch.
• PVC or CPVC needs a threaded adapter to carry its glued slip joint over to the metal fitting, or a compression fitting with rubber washers.
• Galvanized steel joins by threading into an existing female fitting, usually through a dielectric union where it meets copper.

What's already in the box, and what a different pipe material adds

The device's copper adapters are sized to fit standard 3/4-inch and 1-inch copper pipe, which is why the manufacturer's installation guidance describes the basic fit as something that does not call for specialist tools. That guidance also recommends professional installation once the plumbing is older or non-standard, which is exactly the situation this article is about: a main line that is not copper, or copper that has aged in ways a straightforward fitting cannot account for. If you have not confirmed your pipe's diameter yet, it is worth doing that first, since the wrong-size adapter or fitting will not seat properly regardless of material; the sizing guide walks through telling 3/4-inch from 1-inch and from the metric DN20/DN25 sizes some markets use, at how to measure your main water line before buying fittings.

Everything below assumes you already know your pipe's size and are trying to work out its material and the joint type that goes with it. For the background on what this category of device does and why a whole-house shut-off differs from a single-fixture one, the hub guide on how smart leak detectors and auto shut-off valves protect a home covers that context. And if the goal is a full walkthrough of the installation itself rather than just the pipe connection, a dedicated article covers the complete step-by-step process for installing an automatic shut-off valve.

Connecting to PEX pipe

PEX is joined using one of two families of fittings, and knowing which one your existing line uses matters before you buy anything to extend it toward the copper adapter.

Expansion fittings vs crimp/cinch fittings

PEX-A pipe is typically joined with expansion fittings, sometimes called ProPEX-style fittings, which work by temporarily stretching the pipe's end with a tool so it slides over a fitting and then shrinks back to grip it tightly. PEX-B pipe, by contrast, is usually joined with crimp rings or cinch clamps that a dedicated tool tightens around the pipe once it is pushed onto a barbed fitting. The two methods are not interchangeable: an expansion tool will not properly set a crimp ring, and a crimp tool cannot expand PEX-A. If you are not sure which type of PEX you have, the pipe itself is usually marked, and matching the tool to the pipe type is the first thing to settle before choosing a transition fitting.

Getting from PEX to the copper adapter

A common route from PEX to the device's copper adapter is a male sweat adapter: the copper side of that fitting is soldered onto a short stub of copper pipe and left to cool completely, and only then is the PEX end pushed or crimped onto the fitting's barbed end, using a connector that the PEX system's own manufacturer approves for that pipe. If you would rather avoid soldering entirely, a stab-in tee can be pushed onto an existing section of copper or CPVC pipe to bring a PEX branch into the line without any heat involved, or PEX can connect directly to a compression-type shut-off valve, which clamps onto the pipe mechanically rather than requiring a soldered or glued joint upstream of the device.

Connecting to copper pipe

Copper is what the included adapters are built for, so this section mainly covers how to prepare the pipe end that will meet them.

Sweat/soldered joints

A soldered, or "sweat," joint is permanent once made. The pipe is cut square and deburred, both the pipe end and the inside of the fitting are cleaned until the copper is bright, flux is brushed onto both surfaces, and the fitting is heated with a torch, mainly at the fitting itself, until solder melts and is drawn fully around the joint by capillary action. Because this involves an open flame on a line that may still hold water, the line should be drained and dried first, and a nearby faucet opened to relieve any trapped pressure. Keep a fire extinguisher or a bucket of water within reach whenever a torch is in use near a wall, floor joist, or anything flammable, and if that preparation feels like more than you want to take on, this is a reasonable point to call in a plumber rather than proceed.

Compression fittings

A compression fitting reaches the same result without a torch: a metal or plastic ring is placed over the pipe end, and as the fitting's nut is tightened, that ring is wedged against the pipe to form a watertight seal. Because nothing is soldered or glued, a compression fitting can also be loosened and remade later, which makes it a practical choice if you expect to service or replace the connection again.

Connecting to PVC or CPVC pipe

Plastic pipe joins by gluing rather than heat, which changes what a transition to the copper adapter needs to look like. PVC and CPVC pipe is normally joined with a cemented slip joint, where primer and solvent cement fuse the pipe and fitting into a single rigid piece. To carry that joint over to a metal fitting, a threaded adapter does the work: one end cements onto the plastic pipe in the usual way, and the other end presents standard threads that a metal fitting can screw onto. Going from copper to CPVC can also use a compression fitting fitted with rubber washers, which flexes enough to absorb the different rates at which plastic and metal expand as temperature changes, something a rigid soldered joint cannot do as well. If you do solder on the copper side of a mixed joint, finish and cool that joint completely before it comes anywhere near an existing plastic fitting, since the heat from a torch will melt PVC or CPVC even at a short distance.

Connecting to old galvanized steel pipe

Galvanized steel is the material most likely to turn a straightforward fitting into a job for a plumber, mainly because of how the pipe ages.

Galvanized pipe joins by threading, with pipe-thread tape or pipe dope applied to the threads to seal the connection. The complication is that male threaded ends thin out as galvanized pipe corrodes internally over the years, so cutting fresh threads into an old male end is more likely to crack or strip that section than to produce a sound joint. Making the new connection at an existing female fitting instead avoids putting fresh threading stress on pipe that may already be thinner than it looks from the outside.

Where a copper fitting meets galvanized steel directly, a dielectric union is the standard part used to separate the two different metals and slow the galvanic corrosion that happens when they touch in the presence of water. Plumbers do not fully agree on how much a dielectric union actually helps once corrosion has already started, and some local codes accept a plain brass fitting as an alternative, so it is worth checking what your jurisdiction expects before buying parts. If the existing galvanized fittings use a thread type you cannot immediately identify, the separate guide on telling BSP and NPT threads apart covers how to check before you order an adapter that will not seat.

When the connection is a job for a licensed plumber

The manufacturer's own guidance already draws this line: professional installation is recommended once the plumbing is older or non-standard, and that description fits galvanized steel and unusual existing fittings more often than it fits new copper or PEX. A few signs are worth treating as a stop point rather than something to push through. Threads that look corroded, pitted, or noticeably thinner than the rest of the pipe are a sign the fitting may fail under normal tightening. Uncertainty about what the existing pipe material even is, once you are looking at an unlabeled section behind a wall or in a crawlspace, is reason enough to get a second opinion before cutting anything. Needing to solder close to an existing plastic fitting raises the risk of melting something you cannot easily replace. And a genuine question about whether local code requires a dielectric union or accepts brass instead is a code question, not a plumbing-skill question, and is worth a call regardless of how comfortable you are with a torch or a wrench.

This article covers only the connection between your existing pipe and the device's copper adapter. The broader question of how the whole device goes in, and when the entire job, not just this one joint, makes more sense for a professional, is covered in the dedicated installation guide linked above. If you are also weighing a separate manual shut-off for the same line, the comparison of gate valves against ball valves covers that decision on its own terms.

Once you have matched your pipe's material to the fitting it needs, the rest of the purchase is a small, well-defined one rather than an open-ended plumbing project. The product page lists the full contents of the box, including both included copper adapters, so you can check exactly what you already have before adding the one extra transition part your pipe material calls for (source: Smart Whole House Water Leak Detector with Auto Shut-Off Valve).
