Water Heater Leak Protection: Local Shut-Off Kits vs Whole-House Auto Shut-Off

A water heater leak detector with an automatic shut-off comes in two distinct forms, and the difference matters more than the marketing usually admits. A local kit places a sensor directly under the heater and closes that one appliance's own supply line when it senses water. A whole-house valve sits on the home's main line and watches flow to every fixture, the water heater included, closing when it sees a pattern that looks like a leak rather than waiting for standing water to reach it. Both act within seconds once triggered. What actually separates them is where the sensor sits and how much of the house each one is protecting.

• A local kit only reacts once water has reached the drain pan or floor under the heater; a whole-house valve reacts to an abnormal flow pattern on the main line, including flow caused by the heater itself, before water has necessarily pooled anywhere.
• A local kit is the simpler, less expensive choice when the water heater is the only appliance you're trying to protect.
• A whole-house valve costs more and needs installation on the main line, but it extends the same kind of protection to the heater and to every other fixture in the house from a single device.
• Neither device stops the failure that caused the leak in the first place; both only limit how much water gets out once one starts.

What a water heater leak actually puts at risk

Most residential storage tank water heaters hold between 30 and 80 gallons, with 50-gallon electric units being a common size in US homes (source: Consumer Reports). That's the volume sitting under pressure at the point where a tank or fitting fails, and it isn't the whole story: as long as the incoming supply line stays open, pressure keeps refilling the tank as it drains, which is why how quickly the water gets shut off matters as much as how big the tank is.

Water damage and freezing accounted for 22.6% of US homeowners insurance losses in 2023, with an average claim of $15,400 between 2019 and 2023, and roughly one in 60 insured homes files a water-damage or freezing claim in a given year (source: Insurance Information Institute). Those are national figures, useful for understanding the scale of the risk generally, not a prediction of what any single leak at your own water heater would cost.

Local, appliance-specific shut-off kits

A local kit places its sensor in the drain pan or directly on the floor under the water heater, exactly where a leak from that appliance would show up first. When the sensor contacts water, it closes a valve on that appliance's own supply line, and on some electric models it cuts power to the unit at the same time; the Watts LFWDS system, for example, shuts off both water and electrical power to the water heater it's attached to as soon as its sensor detects moisture (source: Watts).

Because the sensor sits right at the appliance, it responds to standing water rather than to a flow pattern happening somewhere else in the plumbing. That makes it a direct, narrowly scoped way to protect one fixture, and it's straightforward to understand: if there's water under the heater, the valve closes.

What this kind of kit doesn't cover

A leak anywhere else in the home's plumbing, whether it's a supply line under a sink, a running toilet, or a burst washing machine hose, isn't on this kit's sensor and won't trigger it. Protection stops at the one appliance the sensor is placed under.

A whole-house auto shut-off valve, applied to the water heater

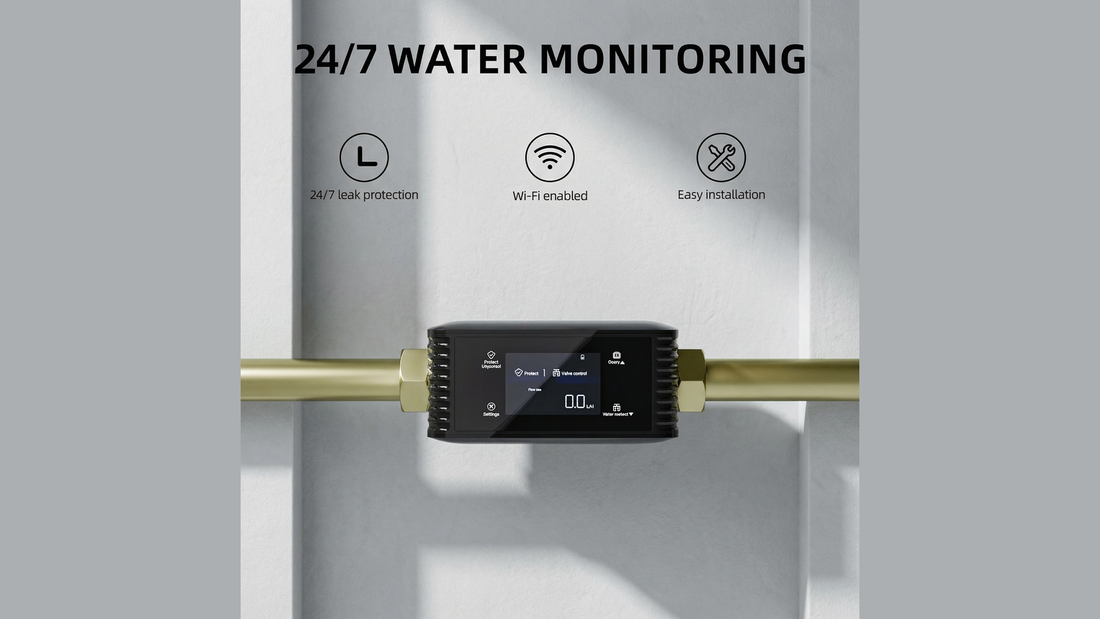

Whole-house smart leak detectors and shut-off valves take a different approach: Hydrion's Smart Whole House Water Leak Detector installs on the home's main line rather than at any single appliance, so it monitors the water heater and every other fixture in the house from one point.

Its ultrasonic sensor watches flow continuously rather than waiting for standing water to reach it, sensitive enough to notice an abnormal pattern as small as roughly a drip a minute, and it closes its motorized valve within seconds once that pattern looks like a leak. A rechargeable battery keeps it working through a power cut, and the companion Smart Life app reports flow, temperature and usage data along with alerts, which matters if a slow leak develops at the heater while no one happens to be home. The unit fits standard 3/4-inch and 1-inch supply lines with the adapters included, and the manufacturer recommends a professional installer for older or non-standard plumbing.

Choosing between the two for your water heater

When a local kit is enough

If the water heater is the only fixture you're worried about, and you want a sensor sitting exactly where a leak from that appliance would appear, a local kit answers the question directly and at a lower cost. It's a reasonable choice for a heater in a finished space, like a closet or upstairs utility room, where even a small amount of standing water would cause disproportionate damage.

When whole-house coverage is worth it

A whole-house valve costs more and requires installation on the main line, which is why the manufacturer recommends a professional installer for older or non-standard plumbing. In exchange, it protects the water heater along with every other supply line, fixture and appliance in the house from a single device, so a leak at a toilet supply line or a washing machine hose gets the same response as one at the heater. If you'd rather solve leak protection for the whole home in one step instead of adding a separate kit at each appliance, that's the case for choosing whole-house coverage.

Neither approach stops the failure itself. A valve that closes within seconds still lets some water escape before it acts, and nothing described here replaces the maintenance that keeps a tank from failing in the first place. If you're trying to work out why a heater is leaking rather than how to catch it faster, the causes and urgency behind a water heater leaking from the bottom is the more useful starting point, and the steps for shutting off a water heater safely are worth knowing regardless of which detection method you use, since a device closing a valve doesn't replace understanding how to do it by hand.

If a whole-house valve looks like the better fit once you've weighed the two, the installation walkthrough covers what the job actually involves, and the cost-versus-risk breakdown is a useful next read if you're still deciding whether either device is worth buying at all. If the water heater isn't the only fixture worth covering, the whole-house leak detector extends that same protection to it and to every other line in the house from a single installed point.
