Leak sensor with solenoid valve or whole-home detector: which should you choose for your home?

A leak sensor kit with a solenoid valve and a leak detector installed on the main water line address the same concern—uncontrolled water in a home—but work in different ways. The first responds only when water physically reaches a sensor placed in a specific spot, for example under a sink or next to a washing machine, and the sensor then tells the solenoid valve to shut off the water supply. The second is installed directly on the main water line where water enters the home and monitors the flow in real time, so it detects a leak wherever it occurs, not just where you installed a sensor. The difference matters most when you have several risk areas in your home or cannot know in advance where a leak might occur.

• A kit with a point sensor and a solenoid valve protects exactly where the sensor is placed; the rest of the home is not covered by that device.
• A detector installed on the main water line monitors all the water flowing into the home, including small leaks below the threshold a trained eye would notice.
• A flow detector’s sensitivity threshold is usually expressed in GPM (gallons per minute); converted to liters per minute, it is easy to compare with a faucet left running.
• The two approaches are not mutually exclusive: a point sensor at a known risk area, together with a main-line detector for the rest of the home, covers different situations.

What a leak sensor kit with a solenoid valve actually is

The type commonly found at Romanian retailers has two separate physical components: a point sensor installed where there is a risk of a leak, and a solenoid valve installed on a supply pipe, connected to each other by a cable. A representative example on the local market is the PNI SV100 kit, which pairs a point sensor with a DN20 3/4-inch solenoid valve, connected by a cable approximately 5.7 meters long (source: PNI SV100).

How the sensor triggers the solenoid valve

The mechanism is simple: the sensor sits at floor level or next to an appliance at risk of leaking, and when water touches its contacts, it sends an electrical signal to the solenoid valve installed on the pipe. The valve closes within a few seconds; for example, the PNI kit manufacturer specifies a closing time of approximately 5 seconds after activation. In practice, the water supply to that point is shut off as soon as the sensor confirms the presence of water, limiting the amount that escapes after detection.

What a point sensor cannot detect

The category’s limitation follows directly from how it works: a point sensor responds only when water physically reaches it. That is why these sensors are usually installed under sinks, next to boilers, behind washing machines, or around reverse osmosis systems—in other words, exactly where the homeowner anticipates a risk (source: Fresh Water Systems). If a different pipe fails—in a wall, under the floor, or on a level not covered by any sensor—the kit has no way of knowing that something is happening, no matter how well its solenoid valve works.

How flow-based detection on the main water line works

A flow detector is installed inline, directly on the main water line through which water enters the home, so it can “see” every liter before it reaches a faucet or appliance. There are mechanical versions, with a small internal turbine that rotates in proportion to the flow, and ultrasonic versions, which measure flow using sound waves, with no moving parts (source: Fresh Water Systems). Instead of waiting for water to reach a fixed point, the system monitors the flow pattern and triggers an alert or automatic shutoff when it detects a continuous or abnormal flow, such as a leak that never stops completely or steady water use during the night.

Understanding the sensitivity threshold (GPM and liters per minute)

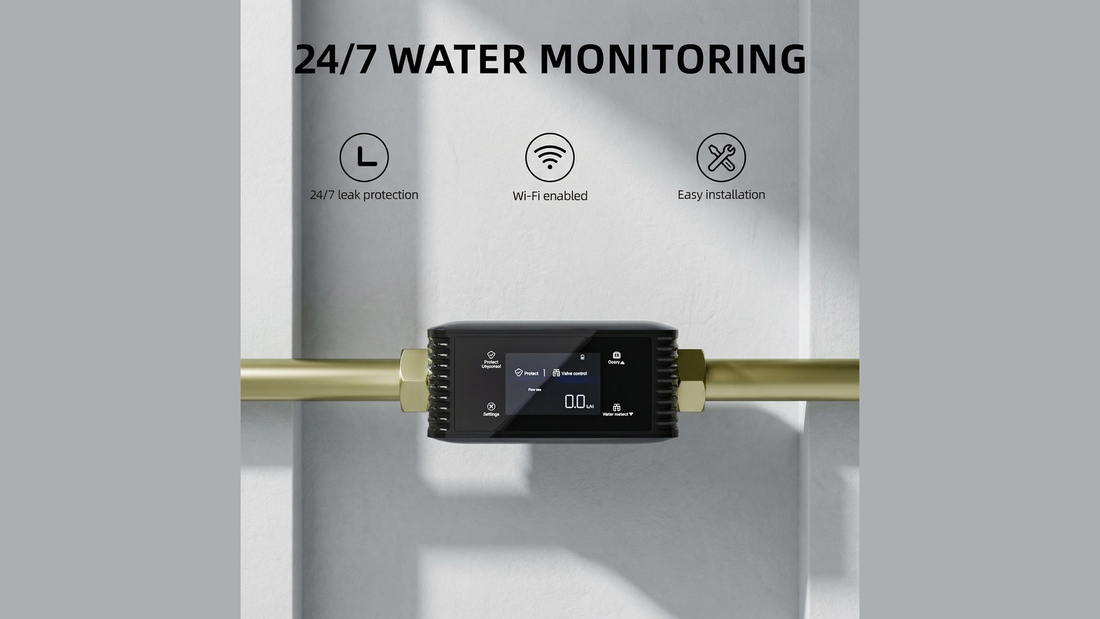

The Hydrion smart whole-home leak detector with automatic solenoid valve is specified by the manufacturer as having ultrasonic sensitivity of approximately 0.01 GPM, within a stated range of 0.001–18.00 GPM, and is installed inline on the home’s main supply line. For readers used to metric units, one GPM is approximately 3.785 liters per minute (the conversion formula is LPM = GPM ÷ 0.2642), which shows that the 0.01 GPM threshold corresponds to a leak of approximately 2.3 liters per hour, or about 0.04 liters per minute (source: Viking Pump). This is a slow enough flow that, in a hidden location—for example, behind a wall or under the floor—it can continue for hours before the homeowner notices any visible sign, moisture, stain, or odor. These figures are the manufacturer’s stated specifications, not the result of an independent laboratory test.

Side-by-side comparison: coverage, installation, and control

The difference between the two setups becomes clear when you compare them using the three criteria that matter in practice. In terms of coverage, a single detector installed on the main water line protects the home’s entire incoming water supply, while a kit with a point sensor covers only the spot where that sensor is placed; for several risk areas, you need several sensor-and-valve sets. For installation, a point kit is placed next to an appliance, without any work on the plumbing, while a main-line detector is installed inline on the pipe where water enters the home, and the manufacturer recommends professional installation for optimal results.

Control and alerts differ just as much. The Hydrion detector connects through the Smart Life app, works on 2.4G and 5G Wi-Fi networks, sends push notifications, SMS messages, and phone calls, has a rechargeable backup battery for power outages, and is listed as compatible with Alexa and Google Assistant. A typical point kit usually offers only local control to open or close the solenoid valve, without a comparable ecosystem of remote alerts. Neither approach is “better” in absolute terms: each answers a different question about where the actual risk is in your home.

Which scenarios suit each approach

If you know exactly where the only risk area in your home is, for example, the washing machine or boiler, an inexpensive kit with a point sensor and solenoid valve reasonably covers that situation without requiring access to the main water line. Things change when you have several wet areas in your home, cannot know in advance where a pipe might fail, or prefer a single installation point that covers the entire home; in these cases, a flow detector installed on the main water line is a better fit because it reads everything entering the home, not just one specific point.

In apartments, the frequent risk is not only to your own home but also to the neighbors on the floors below, and whole-home coverage helps precisely because the exact location of a future leak is rarely known in advance (source: State Farm). Anyone living in an apartment building who wants to know exactly what installing an automatic shutoff in an apartment involves can read the guide to installing an automatic water shutoff system in an apartment. Combining the two remains an option: a point sensor right by the appliance with a known risk, plus a main-line detector for the rest of the home, with neither ruling out the other.

What to check before choosing

Before choosing between the two setups, it is worth checking a few practical details. The diameter of the main water line and access to it matter because a flow detector is installed inline; the Hydrion whole-home unit is designed for standard 3/4- and 1-inch pipes, with adapters included. Wi-Fi coverage in the installation area matters just as much, because app control and remote alerts depend on a stable connection. You also need to consider whether you want alerts on your phone and by SMS, and compatibility with a voice assistant, or whether a simple local alarm is enough for your situation. Finally, check whether the installation calls for a licensed plumber, as the manufacturer recommends for main-line installations; for specific installation steps, the guide to installing an automatic water shutoff valve covers the tools and stages in detail.

It is worth being clear: neither a point sensor nor a flow detector stops a leak before it starts, and neither guarantees that water damage will be completely avoided. What both do is shorten the time between the start of a leak and the shutoff of the water supply, and the difference between them lies in how much of the home this response covers. For the exact technical definition of a “micro-leak” and the threshold a detector can catch, this guide to detecting very small leaks goes into the subject in more depth, and if you are still deciding whether an automatic shutoff is worth the investment given the actual risk, the cost-versus-risk analysis of automatic shutoffs puts the figures side by side. For anyone who first wants to know what home insurance covers if a flood damages the neighbors’ property, the comparison of PAD and voluntary home insurance clarifies that separately from the choice of device.

For a broader look at automatic shutoffs in general, the guide to smart leak detectors and how automatic solenoid valves help explains the basics before this article’s comparison of system designs. Ultimately, the right choice depends on how many risk areas you have, how well you know them in advance, and how much it matters to you to cover everything with a single installation.
